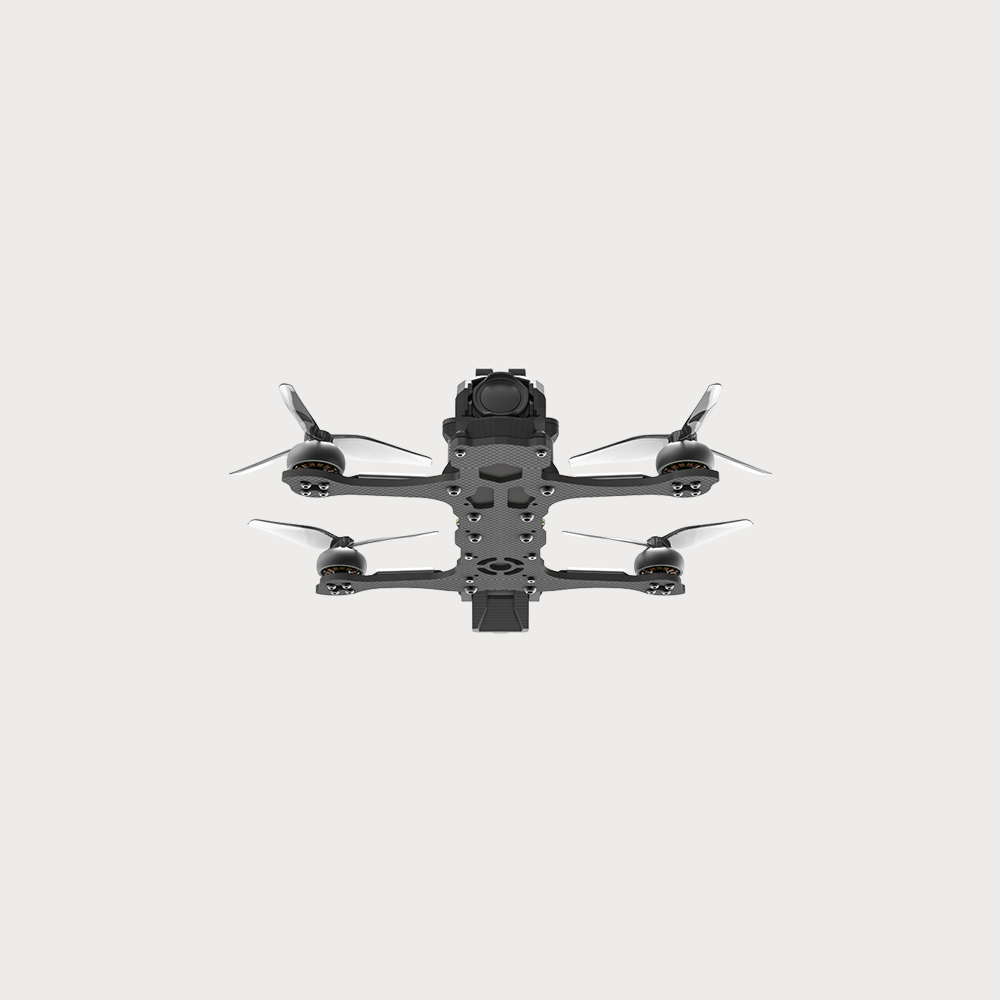

  • The JR-IF1246 is a 3.5-inch drone equipped with DJI 4K O3 HD digital video transmission, which has HD image quality, stable flight and easy control, and the H-shaped frame structure and standard anti-ignition module make it able to maintain balance and stability during high-intensity operation flights. At the same time, it can also be equipped with GoPro to make your flight shooting experience better.
  • $ 1170
  • 0 in Stock NowJR-IF1246

  • Group

    JR-IF1246

  • QUANTITY

  • Contact Online

Structure: H-type

Weight: 216±10g (excluding camera kit)

Wheelbase: 168±2mm

Size: 135×100×44mm (to hood) / 135×100×27mm (to top plate) ±2mm

Power configuration

Motor: XING 1504 3100KV

Propellers: HQ 3.5× 2.5×3

Electrical configuration

Flight controller: BLITZ Mini F7 FC

ESC: BLITZ Mini E55 4-IN-1 ESC

Image transmission: DJI O3 Air Unit Air Unit

Camera: DJI O3 Air Unit Air Unit

GPS module: BLITZ M10 GPS

Flight parameters

Maximum horizontal flight speed: 110km / h

Maximum altitude take-off: 3200m

Takeoff weight: 313±10g (single machine + 850mAh battery)

Maximum hovering time: about 12 minutes

Maximum cruise time: about 9 minutes

Maximum wind resistance level: 5 levels

Working environment temperature: -10°C—40°C

Number of antennas: single antenna
