  • It can be used for detection, dredging and sewage suction operations of urban pipe networks with pipe diameters ranging from 700mm to 3000mm
  • It can be used for detection, dredging and sewage suction operations of urban pipe networks with pipe diameters ranging from 700mm to 3000mm
  • It can be used for detection, dredging and sewage suction operations of urban pipe networks with pipe diameters ranging from 700mm to 3000mm
  • It can be used for detection, dredging and sewage suction operations of urban pipe networks with pipe diameters ranging from 700mm to 3000mm
  • It can be used for detection, dredging and sewage suction operations of urban pipe networks with pipe diameters ranging from 700mm to 3000mm
  • It can be used for detection, dredging and sewage suction operations of urban pipe networks with pipe diameters ranging from 700mm to 3000mm
  • It can be used for detection, dredging and sewage suction operations of urban pipe networks with pipe diameters ranging from 700mm to 3000mm
  • It can be used for detection, dredging and sewage suction operations of urban pipe networks with pipe diameters ranging from 700mm to 3000mm

  • It can be used for detection, dredging and sewage suction operations of urban pipe networks with pipe diameters ranging from 700mm to 3000mm

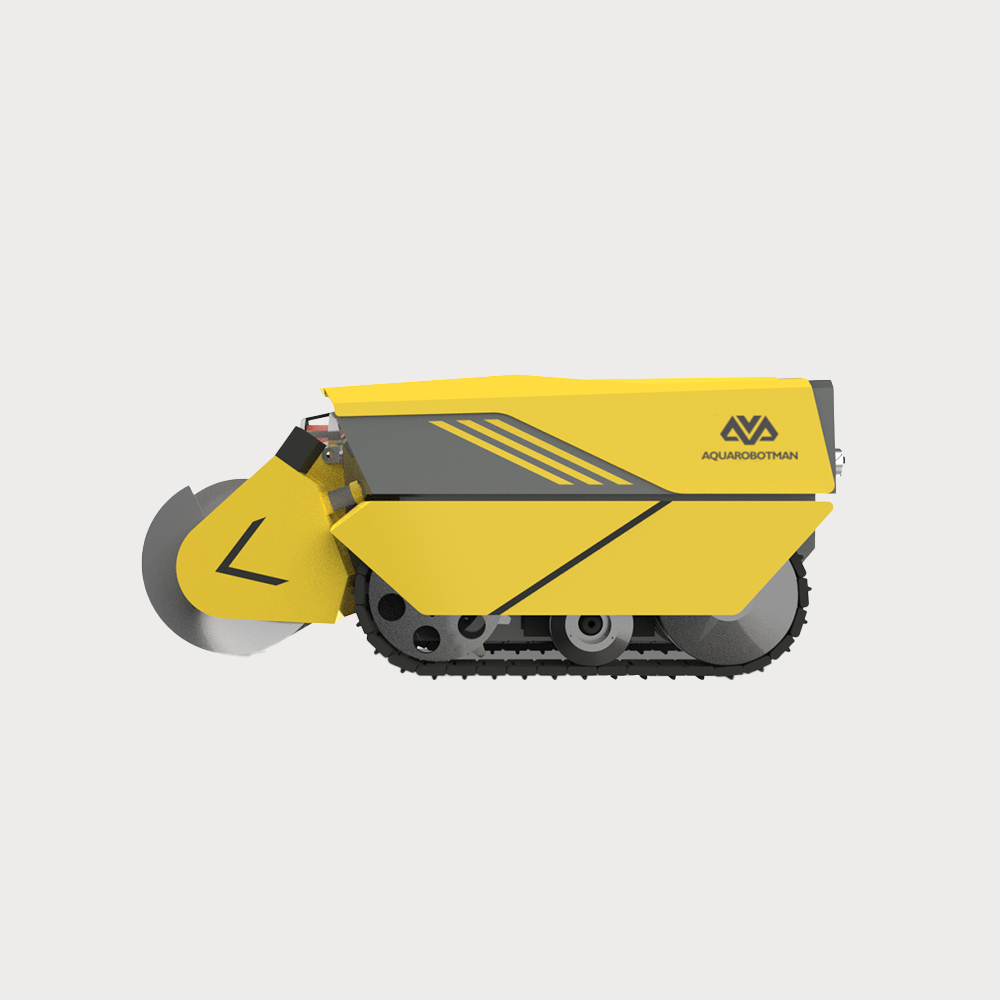

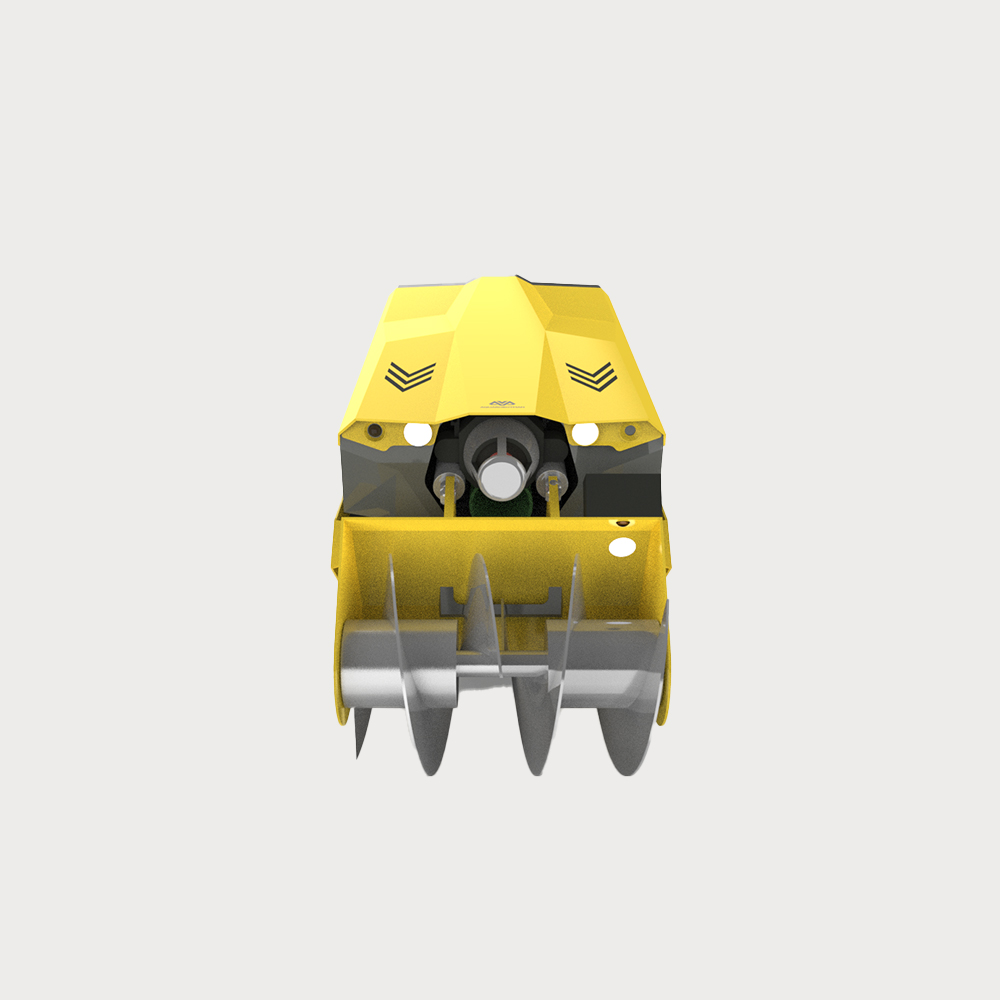

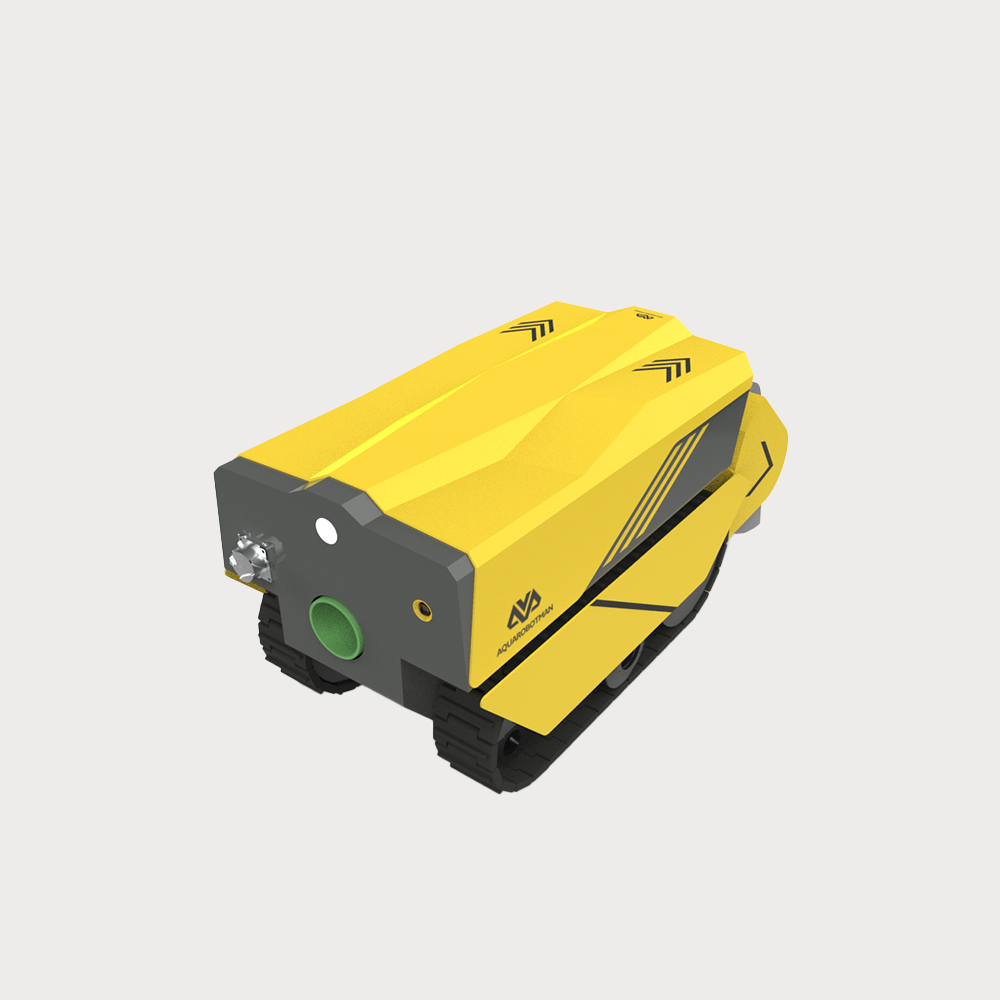

  • The robot is equipped with three ultra-clear 4K detection cameras to realize the monitoring of no dead angles in the pipeline and monitor the situation of the cutter suction device; Equipped with sonar and metering devices, it can accurately measure the thickness of underwater silt, and present the effect and location of dredging in real time; Equipped with a detachable cutter suction device, the cleaned dirt can be discharged to the ground through the pump truck while dredging. The equipment is controlled by a central control box or a mobile device, which is easy to carry and monitor the working status and dredging operation of the robot anytime and anywhere. The use of this equipment can greatly improve the work efficiency of pipe network dredging operators and the economic benefits of the operating unit, solve the problem that manual dredging cannot be effectively desilted under complex working conditions, and eliminate personal injury accidents in high-risk operating environments.
  • $ Inquiry
  • 0 in Stock NowJR-QSX1259

  • QUANTITY

  • Contact Online

Weight

120kg

Volume

475mm × 998mm × 440mm

Angle of climb

20°

Material

316 stainless steel, waterproof and corrosion resistant design

Operating temperature

-10°C~40°C

Operating depth

Up to 30m deep

Applicable pipe diameter

Suitable for 700~3000mm diameter pipe

Force of traction

Two 600W waterproof motors with a maximum traction of 100kgf

Sewage absorption capacity

High power stranded suction head with suction pump, suction range up to 9m, suction capacity up to 50m3/hr

Communication

Communication cable tensile 500kgf, can achieve safe and reliable communication

Hd camera

Ultra HD 4K detection camera for real-time detection

Meter counter

The centimeter-level high precision meter device can accurately locate the position of the robot in the pipeline

Sonar

360-degree ring scan sonar can accurately measure the thickness of underwater silt and show the effect of dredging in real time

Carrier module

Sonar, camera, stranding module, crushing module, stranding module
