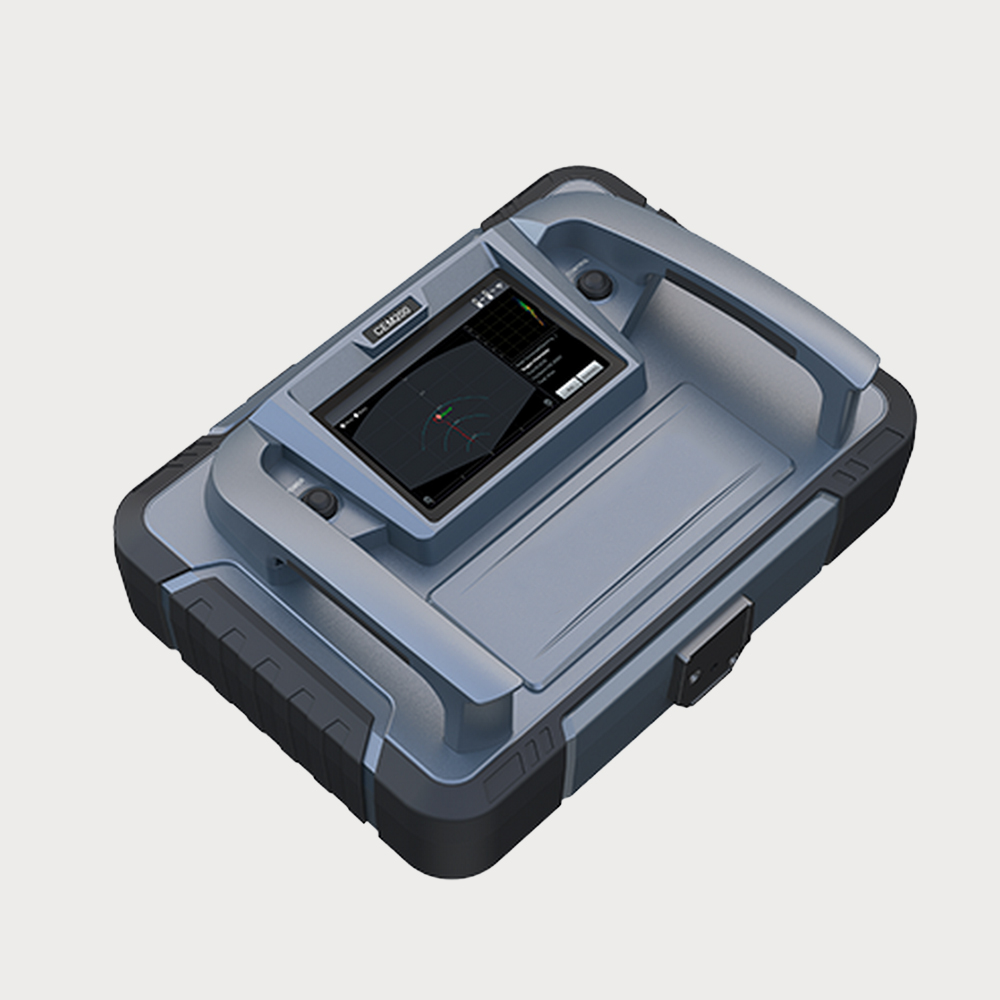

  • Portable Two Dimentional Positionaing Through Wall Radar 44 is a light and small two-dimensional positioning and penetrating reconnaissance equipment. It can penetrate non-metallic obstacles such as building walls to detect multiple personnel targets behind it, and quickly obtain information such as the 2D coordinates, number of targets, and indoor structure.
  • $ 1670
  • 0 in Stock NowJR-HN44

  • GROUP

    44

  • QUANTITY

  • Contact Online

Strong Penetration

Reliable penetration detection of common non-metallic building wall materials

Split Screen Display

Supports the simultaneous display of the built-in display and control screen of the radar host and the handheld display and control terminal, which is convenient for front and rear coordinated operations

Structural Simulation Reconstruction

It can simultaneously detect and display strong reflector obstacles such as walls and large-area metal products behind the obstacles

Multi-target Real-time Positioning

With dynamic and static multi-target real-time detection and two-dimensional positioning capabilities, to obtain richer target information

Portability

Small size, light weight, easy to carry, suitable for individual soldiers

Radar System

Ultra-Wideband Radar with MIMO ArchitectureOperation MethodHandheld detection or tripod support remote display and controlDetection ModeReal-time 2D positioning, simultaneous detection of moving and static multi-targets

Display Control Platform

Embedded display & control platform and remote display & control terminal to display synchronously
